Today’s material handling project spotlight features a custom drive-in pallet rack storage system designed by CEO Al Boston and completed with the help of Senior Project Account Specialist Brenda Harrison.

This project was completed in a warehouse facility near Valley City, ND, and was phase three for this client since moving into their new building three years ago. In 2010 we completed the first phase of this project by installing some standard pallet rack along with two pallets of deep drive-in pallet storage. In 2011 the second phase was completed and added more custom drive-in pallet rack to their facility. As they continued to grow in 2013 they decided to add another custom-designed Drive-In pallet storage rack system.

Drive-in pallet rack is a high-density pallet storage system utilized in warehouses to maximize space while limiting aisle space. Access aisles are kept to a minimum with drive-in rack achieving virtually double or more storage capacity. The most common product cycle for a drive-in rack system is FILO (First In Last Out).

Project Details:

North Dakota Speedrack Drive-In Pallet Storage Rack System

This custom drive-in pallet storage rack system was installed to maximize our client’s space while also meeting their need of storing and loading pallets from all sides of the pallet. This rack system was designed to store pallets both in the 40″ wide way and also the 48″ wide way. This helped our client store their products efficiently for one of their specific customers who needed the trucks to be loaded with the pallets resting side by side the long 48″ wide way, maximizing their trailer space.

AK Representative: Al Boston, Brenda Harrison

Manufacturer: Speedrack

Date: May 2013

Location: Valley City, ND 58072

Installation by: AK Rack Install Team

Other Information:

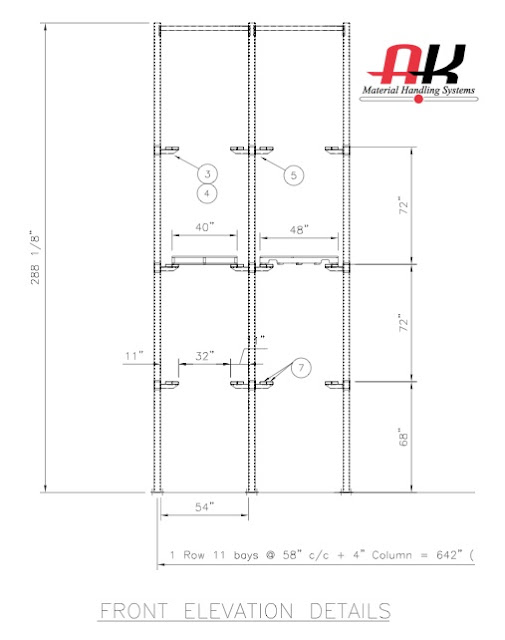

Drive-In Two Way Pallet Entry
(Pallets can be stored loaded and stored in both directions the 40″ Width and  48″ Width)
1 Row of Racking with 11 pallet bays
Pallets stored 4 pallets high  x 5 pallets deep
Two Way Entry (3 deep one side & 2 Deep other side)Pallets to be 48″ Long x 40″ Wide x 60″ High – 2,300 lb. max.

A note from the client.

“A big thanks to your team!  They did a great job! ” – Paul
